Project BB2 - the snowman cometh

Well after my ride out in the snow over the festive season I got to thinking.

Riding in the fresh snow is all well and good and a lot of fun. But the compacted snow and ice that is along a lot of routes is a real pain in the ass and in some cases for some of the forum members collar bones, wrists and ribs as well.

I’d love to do some of that ice racing but haven’t got to Canada or Scandinavia yet to do any and seeing the tyres they use got me thinking.

£2.50 and 1.5 hrs later this is what I’ve got.



Rear wheel, obviously.




1 screw in each knob apart from the very outside edge and I just felt that I’d like a millisecond of warning before I started grinding away any trailing limbs. Also that I wouldn’t be cranking it over that far either.

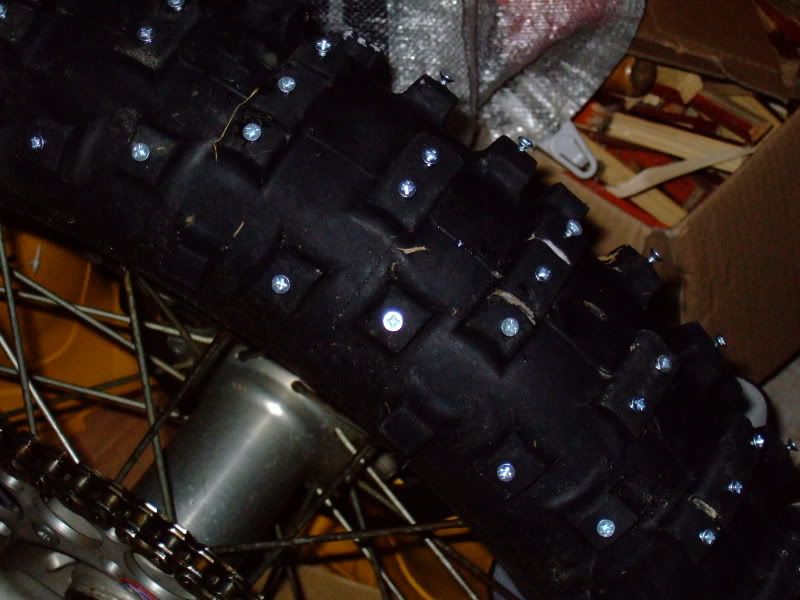

The front wheel.



Again one screw in each knob except for the very outer edge.



The tyres themselves are worn out Metzler 6 days and but I reckon of you had a new hard compound MX tyre with tall knobs you could use longer screws that you could leave more exposed.

As it was I aimed for 5-7mm on each screw and used 5/8 “ screws in what I think would be the high stress areas such as the centre of the rear wheel and the side knobs at the front then half inch everywhere else.

Doing it again I’d use 5/8â€
cypher is offline

January 8th, 2010, 12:58 PM   #2
Senior Member

plumbbob's Avatar

Joined: Aug 2008
From: England, Southampton

Posts: 756
Thanks: 157

I Ride: 02 650 StreetTracker, 92 K100 Special, 92 Triumph Cafe Racer.
Top work Fraser........... having nearly killed myself today trying to test ride my freshly rebuilt 650 i think i might follow your example and embrace the snow..... hopefully not head first.

Thanks for the inspiration.
plumbbob is offline
January 8th, 2010, 01:07 PM   #3
Senior Member

cypher's Avatar

Joined: Mar 2006
From: mid-wales, uk

Posts: 1,778
Thanks: 3

I Ride: Bikes
if i was to do it again i'd use something like these



basically self tappers. similar ones are£22 for 500 from screwfix.

5/8 inch ones would work. possible longer on a new tyre.
cypher is offline
January 9th, 2010, 06:27 AM   #4
Senior Member

cypher's Avatar

Joined: Mar 2006
From: mid-wales, uk

Posts: 1,778
Thanks: 3

I Ride: Bikes
little update did 30 miles today. mostly on snow but a few miles on ice and about 5 miles on tarmac.

no screws missing from the front.

the half inch screws down the centre of the rear have gone but the 5/8" are still there. luckily that only adds up to about 20 screws.
cypher is offline
January 9th, 2010, 11:17 AM   #5
Senior Member

plumbbob's Avatar

Joined: Aug 2008
From: England, Southampton

Posts: 756
Thanks: 157

I Ride: 02 650 StreetTracker, 92 K100 Special, 92 Triumph Cafe Racer.
I hope you don't drive on that bit of tarmac, one or two of those screws could be coming back to haunt you in the future!

How did the bike handle on the tarmac?
plumbbob is offline
January 9th, 2010, 11:48 AM   #6
Senior Member

cypher's Avatar

Joined: Mar 2006
From: mid-wales, uk

Posts: 1,778
Thanks: 3

I Ride: Bikes
Originally Posted by plumbbob
I hope you don't drive on that bit of tarmac, one or two of those screws could be coming back to haunt you in the future!

How did the bike handle on the tarmac?
only if i drive the same 30 mile loop through the back lanes of mid-wales and shropshire

only had a little bit of tarmac and delibrately didnt go above 25 mph. just felt like the tyres were over inflated.
cypher is offline
